Key Features:
- Fine polished & well-plated bimini top fittings;
- 7/8'' ID external eye end, fit for most 7/8'' OD round tubing;
- Corrosion resistance, solid, withstand harsh weather conditions;
- Heavy duty 316 stainless steel for marine & industrial applications;
- Perfect replacement parts for worn-out, plastic, nylon fittings;

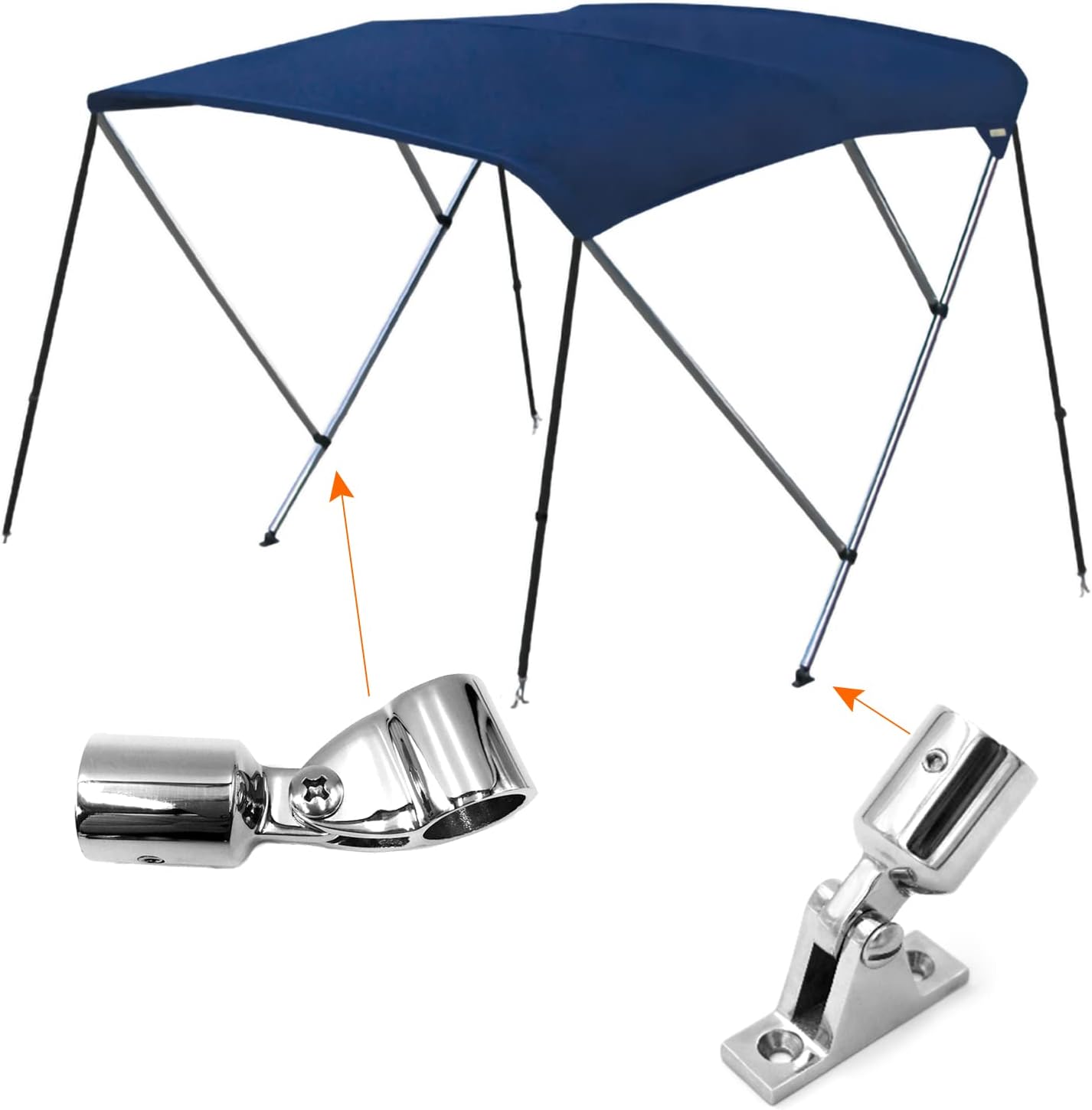

- Work with jaw slide to join the bimini top frame;
- Easy to assemble and install;
Specification:
Material: 316 Stainless steel

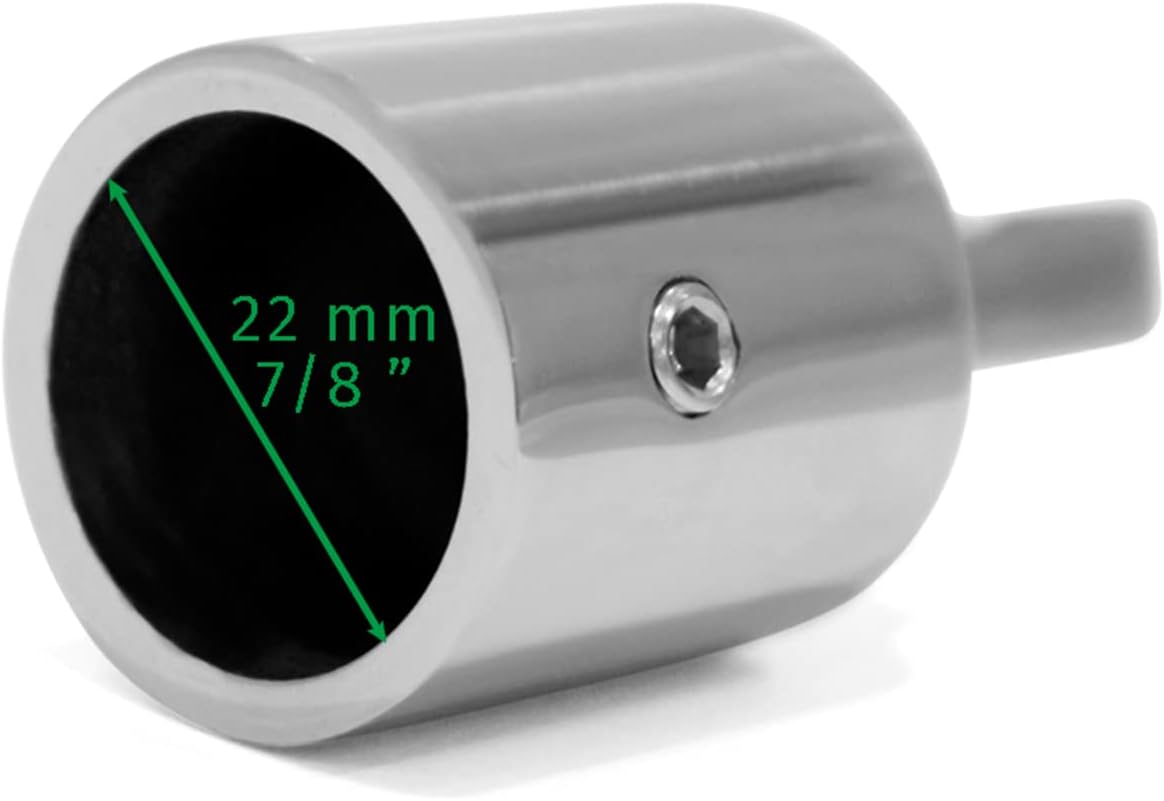

Internal Diameter: 22.5mm (7/8 in)
Outside Diameter: 27.7mm (1 in)
Thickness: 2.58mm (0.1 in); Height: 57mm (2.24 in)
Mounts: 1/4'' bolt holes
Package List:

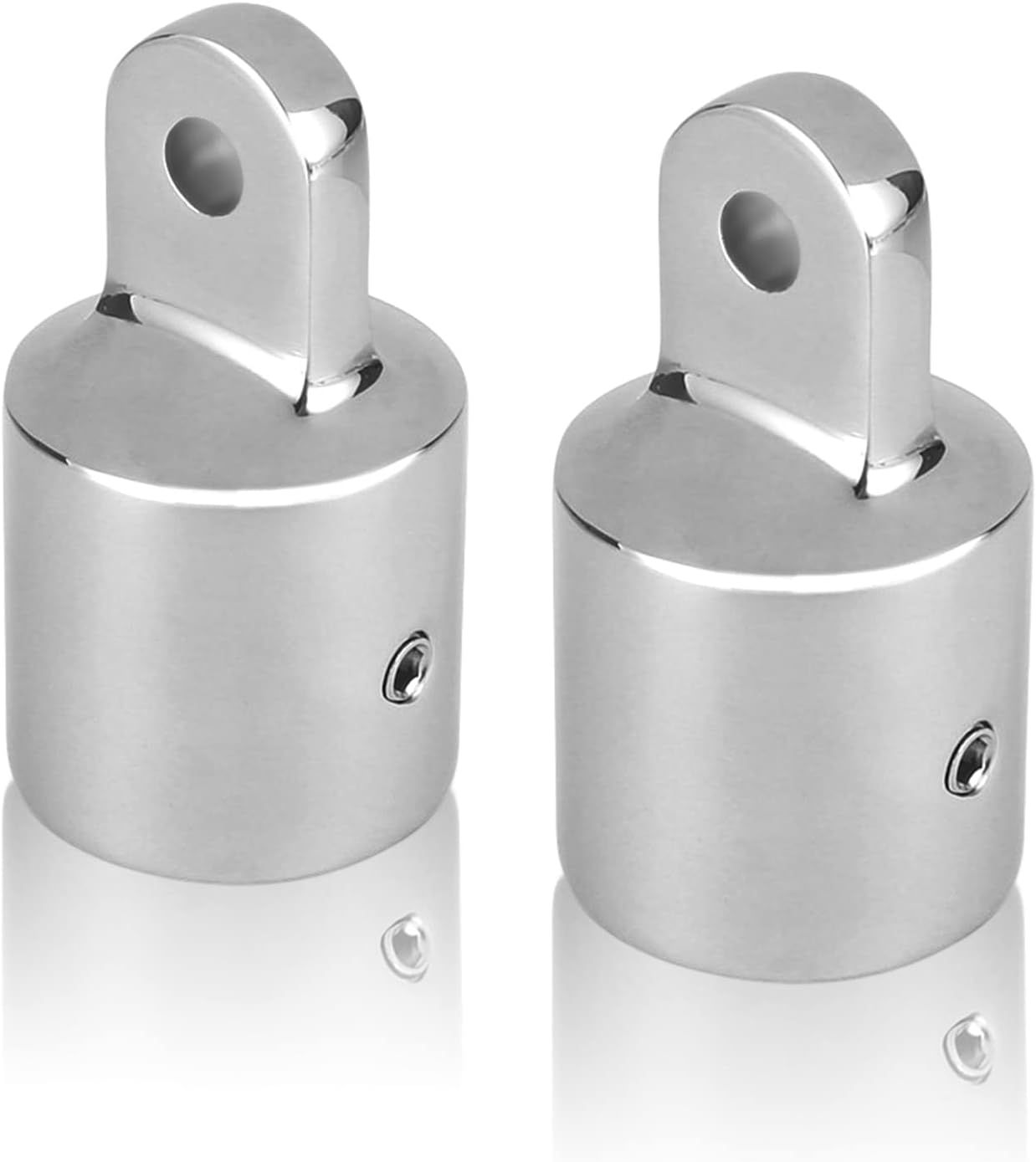

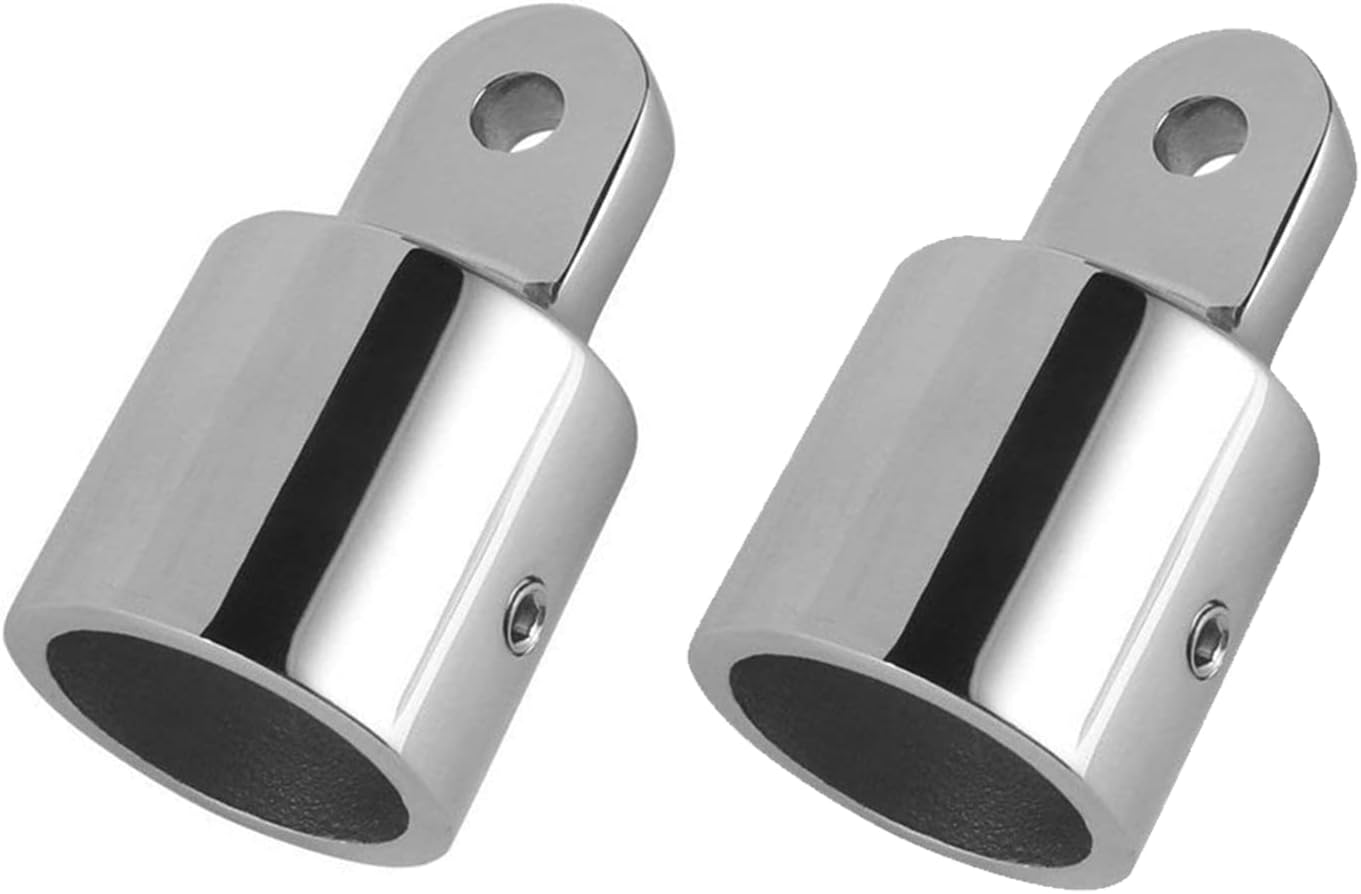

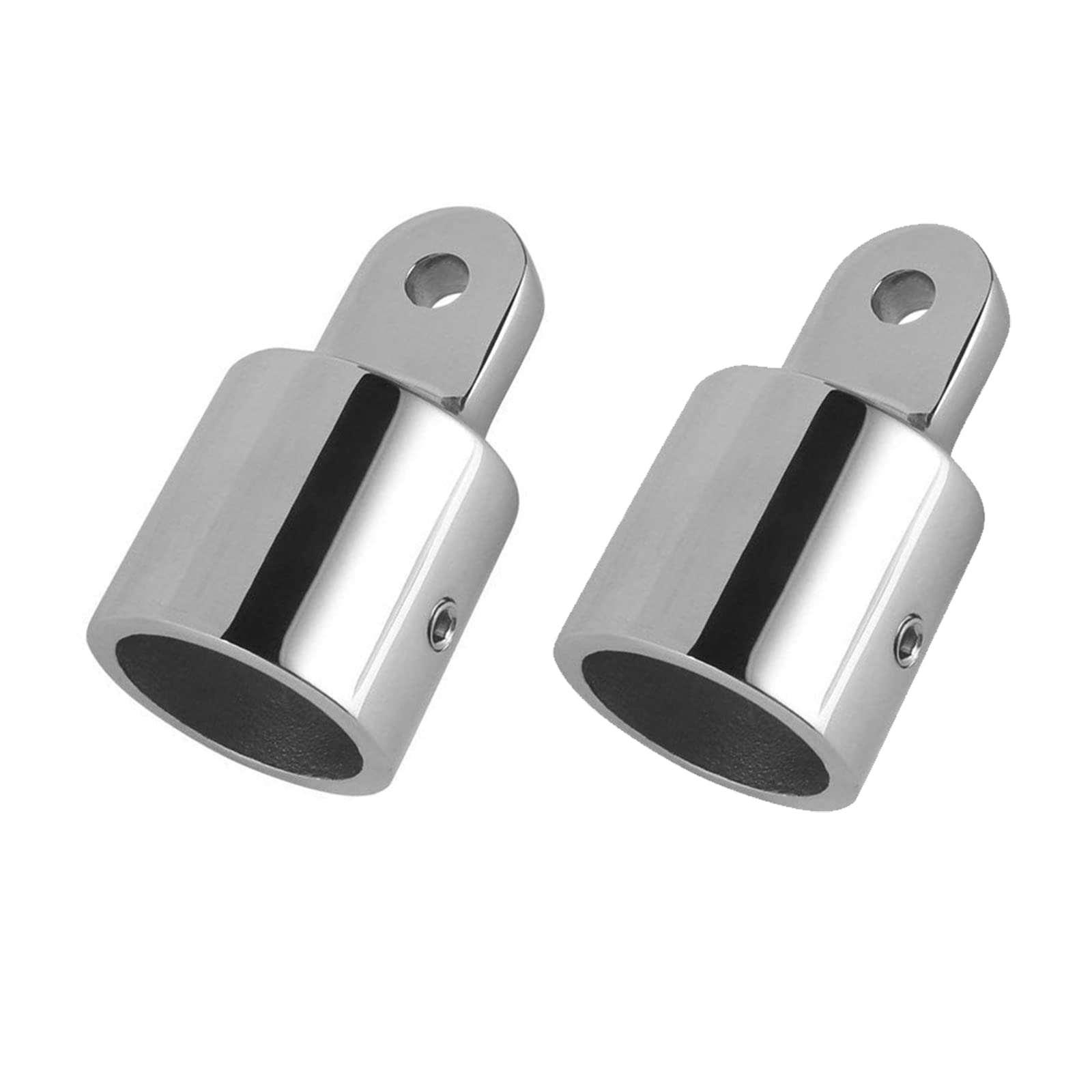

2 x Stainless Steel 7/8" Eye End Cap
Easy Installation
Made easy to assemble and install. No drilling or welding required.

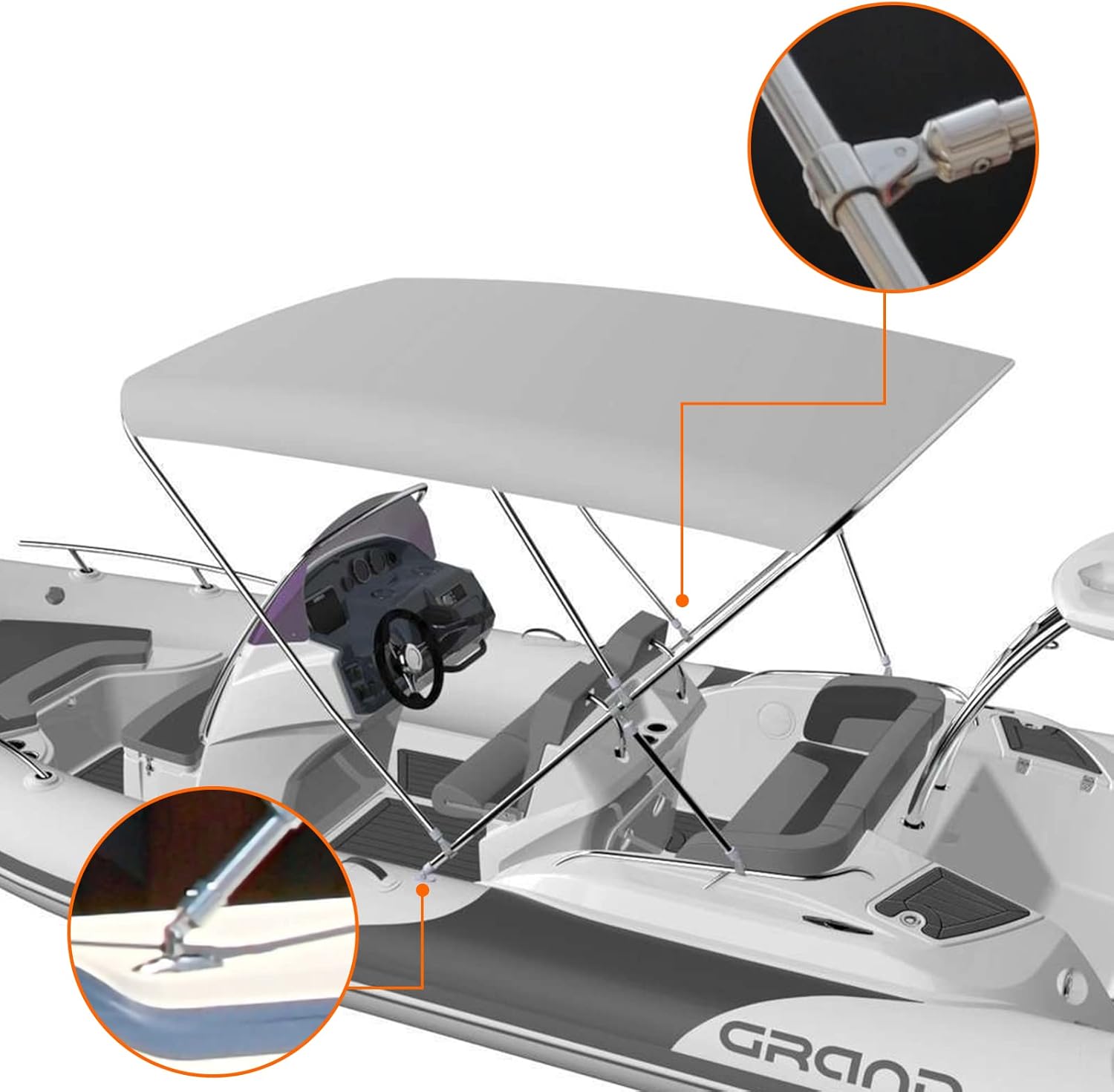

1. Assemble jaw slide with eye ends to join the bimini top frame;
2. Then tighten screws to secure the inserted poles in place.
Product Information
| Material | Stainless Steel |
| Color | Upgraded Silver |
| Connector Type | Cap |
| Thread Size | 0.875 |
| Exterior Finish | Silver |
| Item Weight | 0.16 Kilograms |
| Number of Pieces | 2 |
| Item Package Dimensions L x W x H | 4.25 x 1.77 x 1.34 inches |
| Package Weight | 0.16 Kilograms |
| Model Name | Bimini Top External Eye Ends |
